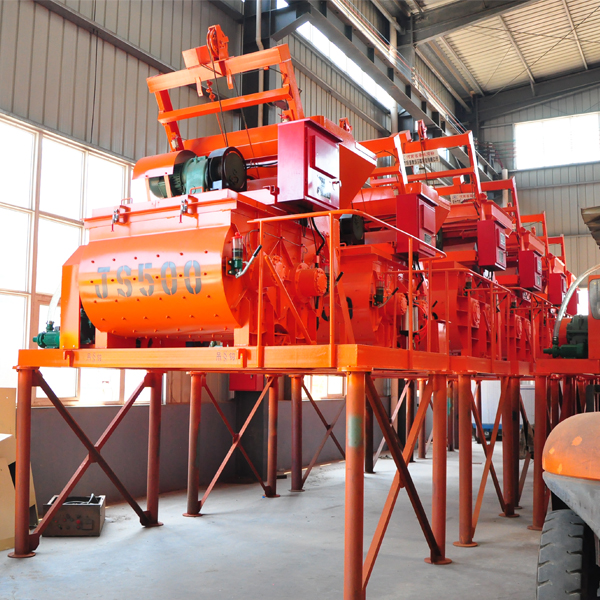

JS Series concrete mixer 2m3 JS500 model

BONA JS series concrete mixer is twin shaft compulsory concrete mixer, which can mix dry concrete, plasticity concrete, light aggregate concrete and various mortars. There are high manganese wear-resisting cast steel lining boards and mixing blades inside the mixer, which is durable and convenient to replace. Combining with different PLD concrete batching machines, various kinds of concrete batching plant can be formed. It applies to various large & medium scale prefabricated factory, construction sites, roads, bridges, airports and tunnels etc.

Technical Specification of JS500-1500 Mixer
Parameter model		JS500	JS750	JS1000	JS1500
Discharge volume		500L	750L	1000L	1500L
Charging volume		800L	1200L	1600L	2400L
Theoretical capacity		≥25m3	≥35m3	≥50m3	≥75m3
Aggregate sizes		≤60/80mm	≤60/80mm	≤60/80mm	≤60/80mm
Working circle		60s	60s	60s	60s
Mixing blade	Speed	35r/min	30.5r/min	25.5r/min	23r/min
Mixing blade	Quantity	2X7	2X8	2X8	2X9
Mixing Motor	Model	Y180M-4	Y200L-4	Y225S-4	Y225M-4
Mixing Motor	Power	18.5KW	30KW	37KW	45KW
Lifting motor	Model	YEZ132S-4	YEZ132M-4	YEZ160L-4	YZE180M-4
Lifting motor	Power	5.5KW	7.5KW	11KW	18.5KW
Pump motor	Model	50DWB20-8A	65DWB35-5	KQW65-100	KQW65-100
Pump motor	Power	0.75KW	1.1KW	3KW	3KW
Weight		1500kg	6150kg	9880kg	10960kg
Dimensions (L X W X H)MM		3030X2300X2680	4550X2250X2450	4640X2250X2250	5058C2250X2440
