■ Specifications

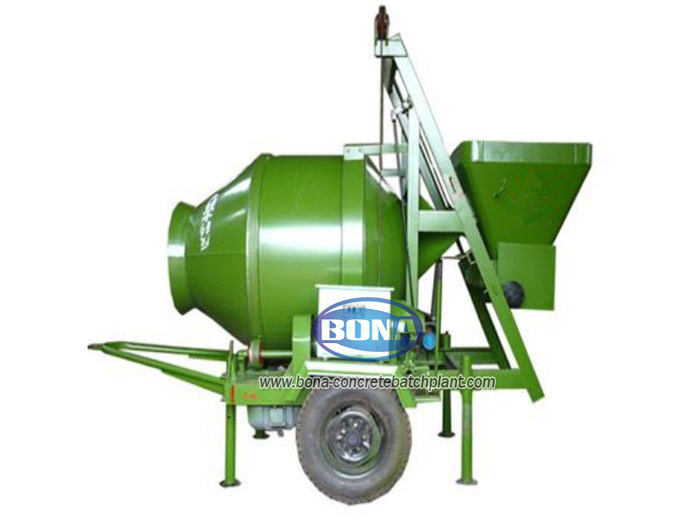

■ Descriptions of Bona JZC500 Concrete Mixer:
JZC series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.
■ Features of Bona JZC500 Concrete Mixer:
1.Bona JZC concrete mixer is a self-falling and movable concrete mixing machine, discharging with the double wimble rotating reversely.
It could be used for mixing plastic and damp-dry rigid concrete.
This mixer drum will mix the material by rotating positively, and discharges by rotating reversely.
■ Specification of Bona Mini concrete mixer:
Model: JZC500
Discharge volume: 500L
Charging volume: 800L
Capacity: 18~20 m3/h
Aggregate sizes: ≤60mm
Rotating speed: 13 r/min
Max. drag speed: 20km/h
Mixing motor: 7.5kw
Lifting motor: 5.5kw
Pump motor: 0.55kw
Weight: 2400kg
Dimensions (L x W x H): 3500x2200x3200 mm


■ Technical Data



Technical Parameters of JZC500 Concrete Mixer:

Model

Discharge volume

500L

Charging volume

800L

Capacity

18~20 m3/h

Aggregate sizes

≤60mm

Rotating speed

13 r/min

Max. drag speed

20km/h

Mixing motor

7.5kw

Lifting motor

5.5kw

Pump motor

0.55kw

Weight

2400kg

Dimensions (L x W x H)mm

3500x2200x3200
