JS1000 Concrete Mixers

  • Discharge volume: 1000L
  • Charging volume:1600L
  • Theoretical capacity: ≥50m3
  • Aggregate sizes: ≤60/80m
  • Mixing Motor Model: Y225S-4
  • Mixing Speed: 25.5r/min

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • diesel engine concrete mixer
  • foam concrete mixer
  • foam concrete mixer
  • foam concrete mixer
  • foam concrete mixer
■ Specifications

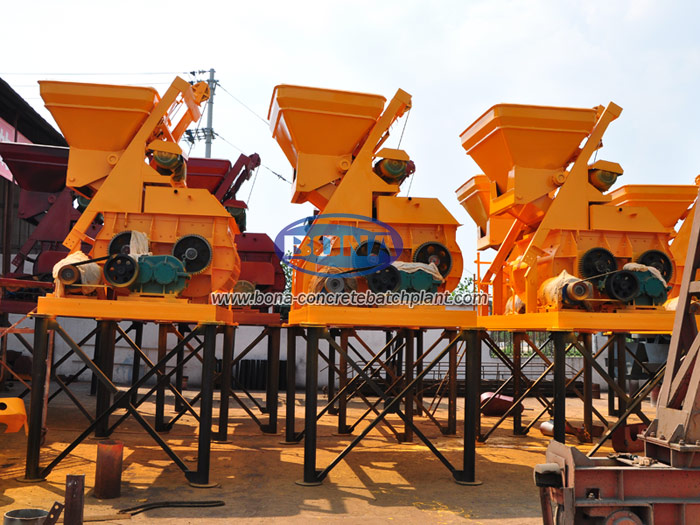

■ Description of Bona JS1000 Concrete Mixer:
It is twin shaft compulsory concrete mixer. It can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars. There are high manganese wear-resisting cast steel lining boards and mixing blades inside the mixer, which is durable and convenient to replace. Combining with different PLD concrete batching machines, various kinds of concrete batching plant can be formed.
■ Features of diesel engine concrete mixer:
1.Special drum makes wire rope working life longer;
2. Adopt international brand-name limit switch;
3. Accurate machining parts;
4. High quality wear-resistant alloy liner, advanced production technology to ensure the clearance uniformity between mixing blades and liners;
■ Application of Foam concrete mixer:
It can mix dry concrete, plasticity concrete, wet concrete, light aggregate concrete and various mortars. It applies to various large & medium scale prefabricated factory, construction sites, roads, bridges, airports and tunnels, etc.
■ Specification of foam concrete mixer:
Model: JS1000
Discharge volume: 1000L
Charging volume: 1600L
Theoretical capacity: ≥50m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade Speed: 25.5r/min
Quantity: 2×8
Mixing motor Model: Y225S-4
Power: 37 kw
Lifting motor Model: YEZ160L-4
Power: 11 kw
Pump motor Model: KQW65-100
Power: 3 kwWeight: 9880kg
Dimensions (L x W x H): 4640x2250x2250 mm

■ Technical Data

Parameter Model

JS1000

Item

Discharge volume

1000L

Charging volume

1600L

Theoretical capacity

≥50m3

Aggregate sizes

≤60/80mm

Working circle

60s

Mixing blade

Speed

25.5r/min

Quantity

2×8

Mixing motor

Model

Y225S-4

Power

37 kw

Lifting motor

Model

YEZ160L-4

Power

11 kw

Pump motor

Model

KQW65-100

Power

3 kw

Weight

9880kg

Dimensions

4640x2250x2250

(L x W x H)mm
