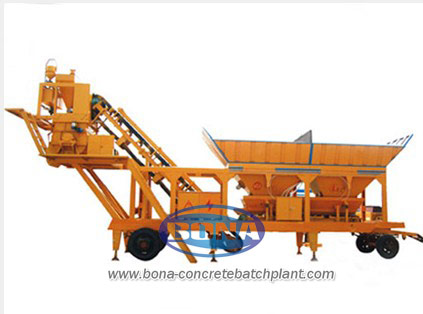

YHZS25 Mobile Concrete Mixing Plant

  • Capacity: 25m3/h
  • Max Aggregate Size: 60/80 mm
  • Discharging Height: 3800 mm
  • Total Power: 35KW
  • Total Weight: 20Ton
  • Total Dimensions: 14500×4050×7600 mm

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • YHZS25 Mobile Concrete Mixing Plant
  • concrete batch plant sale
  • concrete mixing plant sale
  • hzs25 concrete batch plant
  • hzs25 concrete batch plant
■ Specifications

■ Descriptions of  YHZS25 Mobile Concrete Batching Plant
Mobile concrete mixing plant which adopts advanced technologies and scientific researching results from home and abroad and combines our company’s years’ mixing station producing experience, which is a new type mobile concrete mixing station designed by our company independently .It is now one of the best mixers in China, which boasts compact and reasonable designing. Most functions of the mixing station are finished in the pulling chassis, combining aggregate, electronic weighing, mixing and lifting together.It can be stopped to run or be pulled away easily, which is convenient to move and easy to install.
■ Application of YHZS25 Mobile Concrete Batching
PlantIt is can applied to various construction sites like road surface, bridges, dams and airport, and also like architectural workings, concrete product plant and commercial concrete production.
■ Features of YHZS25 Mobile Concrete Batching Plant
1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

■ Technical Data
Model YHZS25 mini mobile concrete batching plant for sale
Rated Productivity 25m3/h
Batching Unit PLD800
Measuring Scope & Accuracy of Aggregate 1500Kg ±2%
Measuring Scope & Accuracy of Cement 300Kg ±1%
Measuring Scope & Accuracy of Water (by flow meter) 200Kg ±1%
Discharging Height 3.8 m
Outline Dimension(Operational State) (L*W*H) 14.5m *5.6m *5.9m
General Power 45.0KW (380V,50HZ)
Total Weight 7700Kg
Control Mode Centralized control
Cement Silos(Optional Parts) 1*50T
Screw Conveyor(Optional Parts) 1*φ219 screw conveyor
