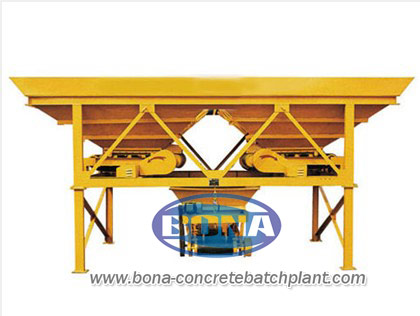

PLD800 Concrete batching plant

  • Item: PLD800
  • Scale hopper volume: 800L
  • Productivity: ≥48m3/h
  • Feeding height: 3000mm
  • General power: 3x3kw
  • Weight: 2500kg
  • Dimension:6400×1600×3000mm

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • PLD800 Concrete batching plant
  • batch plant concrete
  • batch plant concrete
  • batch plant concrete
■ Specifications

■ Descriptions of PLD800 Concrete Batching System:
Concrete batching machine is the sand batching device with loading machine or belt conveying machine feeding, it can batching more than three kinds of material, and use with all kinds of concrete mixers and other measurement device, can combination into automatic and semi-automatic concrete mixing plants, the machine can be effective of guarantee mix proportion accuracy of fine sand, middle sand and stones, improve the quality of concrete mix proportion, is the ideal batching machine of various concrete mixing plants.
■ Features of PLD800 Concrete Batching System:
1. Weighing system adopts world famous brand sensors to ensure accurate weighing.
2. It can be configured cumulative measuring method and independent measuring method according to the size of concrete mixing plant.
3. PLD series concrete batching machine can independently finish aggregate batching requirements. And it is with high weighing accuracy, high precision, high speed, simple operation and many other advantages.
■ Advantages Of PLD800 Concrete Batching System:
1.Perfect humanization Electrical control systemSiemens PLC or remote control operation system provide you a accredited operation machine.
2. Load Cell :It guarantees the precise of the aggregate and protects the products from transfiguration.
3. Discharging System. Make in China, world Quality, and we can provide you the rubber belt as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;

■ Technical Data
Batch plant concrete
Batch plant concrete  products adopt electronic weighing, computer control, digital display, wired remote control operation, etc.

  SEND AN INQUIRY BY EMAIL


Batch plant concrete Descriptions of PLD Series Concrete Batching System: PLD series concrete batching system is a kind of equipment with automatically batching material on the front desk and using mixer together.
It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design. These series products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed. Main Parameters of PLD Series Concrete Batching System:

Item PLD800 PLD1200-III PLD1200-IV PLD1600—III PLD1600-IV
Capacity of Weighing Hopper(m3) 0.8 1.2 1.2 1.6 1.6
Capacity of Storage Hopper(m3) 2×2 3×2.2 4×2.2 3×3.7 4×3.7
Productivity
(m3/h)
≥48 ≥60 ≥60 ≥80 ≥80
Accuracy of Batching ±2% ±2% ±2% ±2% ±2%
Max weighing(kg) 1500 20000 2000 3000 3000
Material Species of Batching 2 3 4 3 4
Feed Height(mm) 2364 3000 3000 3000 3000
Belt Conveyor Speed (m/s) 1.25 1.25 1.25 1.25 1.25
Power(kw) 3×3 4×3 5×3 4×3 5×3
Total Weight(kg) 2300 3900 4900 4750 5750
Dimension(mm) 6400×1600
×3000
9600×2000
×3200
12916×2000
×3200
9600×2000
×3200
12916×2000
×3200
PLD Series Concrete Batching System-II
PLD series concrete batching system is a kind of equipment with automatically batching material on the front desk and using mixer together.

 SEND AN INQUIRY BY EMAIL


PLD Series Concrete Batching System Descriptions of our PLD Series Concrete Batching System: PLD series concrete batching system is a kind of equipment with automatically batching material on the front desk and using mixer together.
It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement, according to user’s design. These series products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed. Main Parameters of our PLD Series Concrete Batching System:

Item PLD2400-III PLD2400-IV PLD3200-III PLD3200-IV PLD4800-IV
Capacity of Weighing Hopper(m3) 2.4 2.4 3.2 3.2 4.8
Capacity of Storage Hopper(m3) 3×12 4×12 3×20 4×20 4×25
Productivity
(m3/h)
≥120 ≥144 ≥160 ≥160 ≥280
Accuracy of Batching ±2% ±2% ±2% ±2% ±2%
Max weighing(kg) 4000 4000 5000 5000 8000
Material Species of Batching 3 4 3 4 4
Feed Height(mm) 3200 3200 3500 3500 3800
Belt Conveyor Speed (m/s) 1.0 1.0 1.0 1.0 1.0
Power(kw) 11 11 11 11 15
Total Weight(kg) 8500 11000 10200 12600 13600
Dimension(mm) 9800×2840
×3900
13370×2800
×3900
10400x2900
×4450
13500×2900
×4450
15520×3900
×5090
