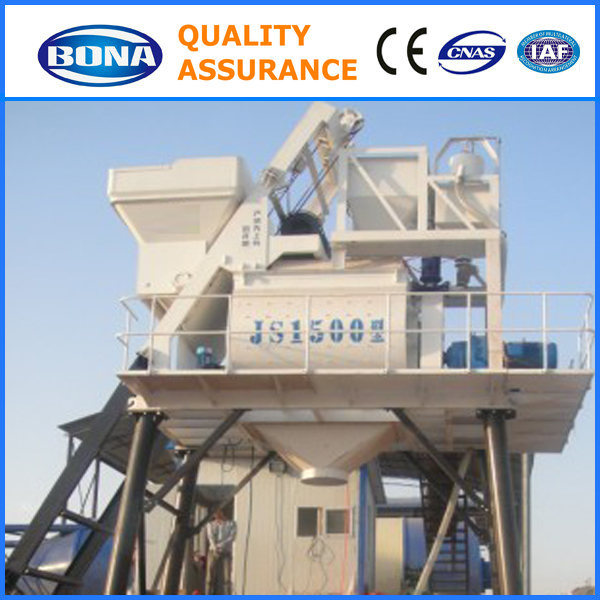

2022 new product Horizontal Twin-shaft Concrete Mixer JS1500 model from China

 JS series twin shaft concrete mixer is applied to all kind of medium and small factory of prefabrication, highway, bridge water conservancy, port, wharf, industrial and civil constructure project. Which can mix dry concrete, plasticity concrete, liquid concrete light aggregate concrete and all kind of mortar. Apart from applied stand-alone. It can combine with PLD batching plant to a simple mixing station.

JS concrete mixer, which installation is convenient. The performance is reliable, and it can coordinate with concrete mixer plant, engineering station.

It can applied to all kind of medium and small factory of prefabrication, highway, bridge, water conservancy, port, whaft, industrial and civil construction project.



Techical Specification of JS500-1500 Mixer
Parameter Model	JS500	JS750	JS1000	JS1500
Discharge volume	500L	750L	1000L	1500L
Charging volume	800L	1200L	1600L	2400L
Theoretical capacity	≥25m3	≥35m3	≥50m3	≥75m3
Aggregate sizes	≤60/80mm	≤60/80mm	≤60/80mm	≤60/80mm
Working circle	60s	60s	60s	60s
Dimensions	30300X2300X2680mm	4550X2250X2450mm	4640X2250X2250mm	5058X2250X2440mm
