■ Specifications

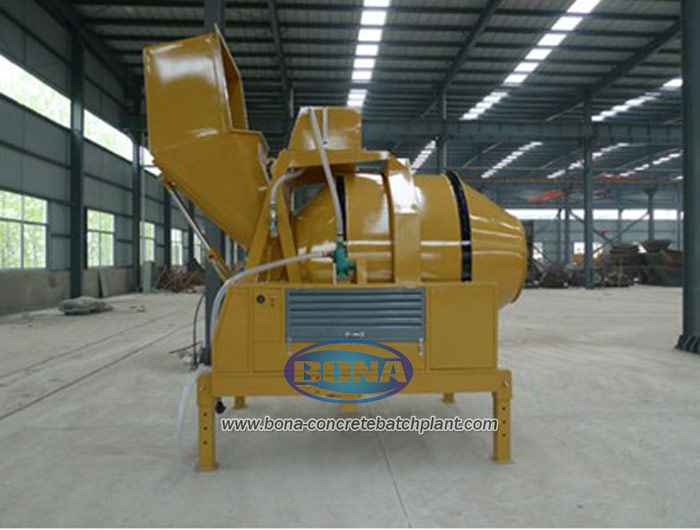

■Description of JZR500 Diesel Engine Concrete Mixer:
The concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete.
The aggregate size is required to be smaller than 60 mm.The drum revolves for mixing and reverses for discharging. The rated output capacity of self-loading concrete mixer is 0.50 cubic meter.The mixer is widely used in building site, road and bridge project, and many other construction sites.
■Features of JZR500 Diesel Engine Concrete Mixer:
1) It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.
Small concrete mixers for sale, we are sent to various countries abroad and praise of consumers, if you are not satisfied with our mixing station, within the specified date, we ensure returns, refunds.

■ Technical Data

Model

JZR500

Type

Self-falling

Towing

Four-towing wheels

Capacity of loading

750L

Capacity of discharging

500L

Capacity of water tank

140L

Diesel engine

Model

YANMAR CY1115-XE

Power

14.7kw

Speed

2200r/min

Max towing speed

20 km/h

Max. Aggregate size

60mm

Output

18~22m3

Hopper lifting model

Hydraulic tipping hopper

Tire

6.50-16



4.00-8

Overall dimension(L×W×H)

3750×2240×3800mm

Total weight

2050kg
