HZS series mixing plant product function introduction and performance

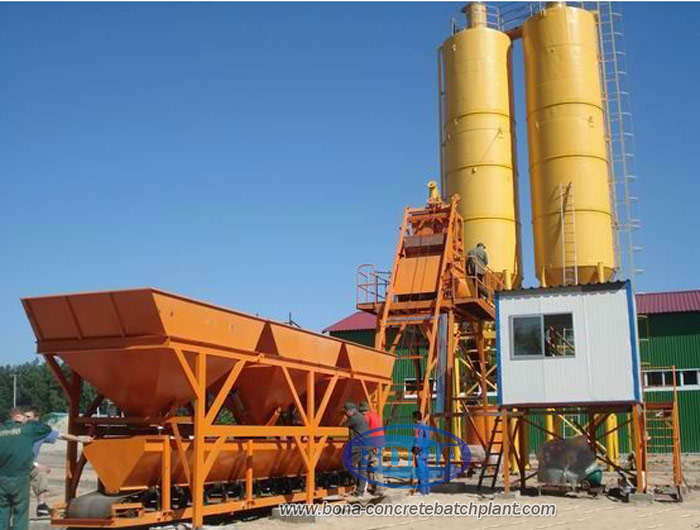

 HZS series concrete mixing plant is a complete set of automatic or semi-automatic concrete mixing equipment, which consists of mixing, batching, electrical control system, powder storage bin, powder screw conveyor and other parts. It is suitable for large and medium-sized construction sites. Prefabricated parts factory and commercial concrete factory. Due to the different configuration of electrical control system can be divided into simple type and standard  type.

1. JS series double horizontal shaft forced stirring host is mainly used for stirring, which is economical and high stirring efficiency.

2. Combined structure, easy installation and relocation.

3. The batching of aggregate, powder and liquid materials is measured by electronic scale with high batching accuracy.

4. The main electrical appliances of the electrical control system are components, which are easy to operate and use.

5. For the engineering applications such as high-speed railway, hydraulic engineering, beam factory and civil construction, optimize the product design and launch a detailed configuration list  for users to customize.



Model	HZS25	HZS35	HZS50/60	HZS75/90	HZS120	HZS150
Capacity(m3/h)	25	35	50/60	75/90	120	150
Concrete Mixer Volume	500	750	1000	1500	2000	3000
Aggregate Feeding Type	Bucket	Bucket	Bucket/Belt	Bucket/Belt	Bucket/Belt	Bucket/Belt
Total Installation Power(KW)	51	91	109	145	190	250
Concrete Mixer Power(KW)	18.5	30	37/2x18.5	45/2x30	2x37	2x55
Aggretate Weighing Range(KG)	1800	2500	3000	3800	5000	7500
Cement Weighing Range(KG)	250	400	600	1000	12000	1800
Discharging(mm)	3800	3800	3900	3900	3900	3900
Max. Aggregate Size(MM)	60~80	60~80	60~80	60~80	60~80	80~100
